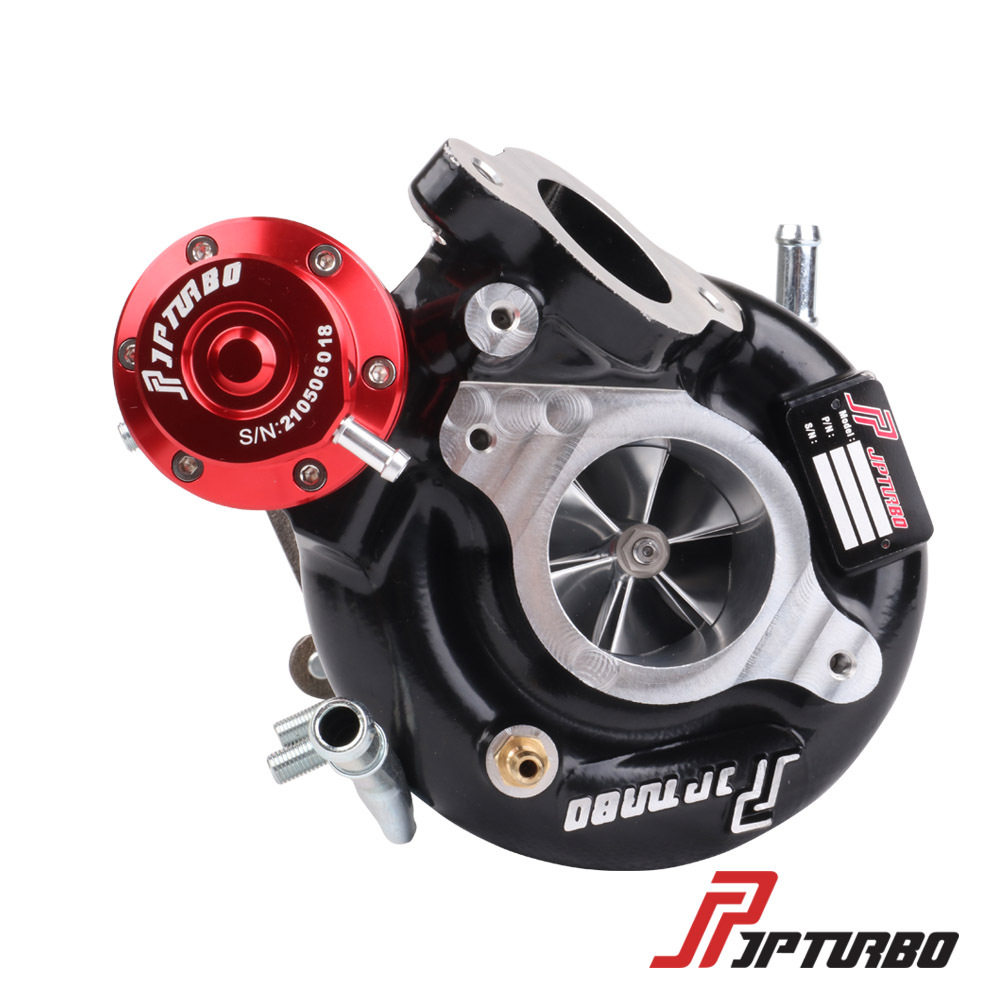

JP Turbo B425X for Subaru FA20 15+WRX

Product Number:5000050132Subaru FA20 15+WRX

SKU: 5000050132 Categories: ,

Additional information

Description

Overview
JP Turbo B425X for FA20 is perfect for users who look for quick and responsive turbo, gain in overall and top-end power.  The output is stable in mid RPM and able to give continuous power until it reaches the max power. The maximum horsepower is expected to reach 400HP.


Engine :FA20Application for
2012-JDM Subaru Legacy 2.0GT DIT 2014-Subaru Levorg 2015-JDM Subaru WRX S4 2014-2018 JDM USDM Subaru Forester 2015+ USDM Subaru WRX

Testing
Modifications :
Upgrade air filter Upgrade downpipe ECU tuning

Testing vehicle :Subaru WRX 6MT

Dyno Testing※The values may be different due to the different modifications and setting on each vehicle.

Features
Direct Bolt-On ; can be installed using the original parts, easy and convenient to install.
Dual ceramic ball bearing The low friction allows the bearing to work at much lower required force and gives a boost at earlier RPM.  The ceramic ball is made of  Si3N4 high-precision fine ground ceramic ball. The spherical surface is in a perfect mirror state.  With the match of the high-temperature, wear-resistant, shock-resistant and lightweight retainer cage, our bearings give an earlier boost than other ball bearings !

The upgraded aero grade aluminum billet compressor wheel allows higher intake air volume and improves air inlet efficiency.

This upgraded high-flow turbine wheel comes with Inconel alloy; able to withstand higher temperature and pressure.  As to the blade design, it offers much higher efficiency in terms of airflow, smoother exhaust and backpressure reduction.  In return, we have much better wheel performance.

The turbine housing valve parts are made of heat-resistant, corrosion-resistant, high-strength alloy, which withstands long-term high temperature and valve opening-closing impacts.   The exhaust housing is made of high temperature-resistant cast iron. It will withstand continuous extreme temperature and pressure.   Billet adjustable actuator comes with different springs, able to adjust boost level according to tuning needs.

Balanced by Schenck balancing machine Precise balancing is one of the essential procedures in JP Turbo production. A good balance is always an important factor in having an outstanding performance and reliability of a turbocharger. A good balance can also improve the noise generated by the high-speed operation. We have very strict operating standards for balance.  First, we perform a low-speed dynamic balancing on a high-precision single-piece balancing machine in order to achieve the best balance of the parts. Secondly, we rigorously assemble the CHRA parts. After the assembly is completed, the high-speed dynamic balance is then performed. Our high-speed dynamic balancing machine can reach a maximum speed of 250,000 RPM.  This balancing standard surpasses the OEM standards.  Each turbo is accompanied by a serial number and the balance test result is kept in our database.

Accessories

Stock Turbo VS JP Turbo B425X

The wheel comparison

Necessary ModificationsIn order to maximize the performance of this turbo, we recommend upgrading suitable software as well as a downpipe, exhaust system, intercooler and the air intake.
