JP Turbo Universal B400X 2.25” Ball Bearing Supercore

Product Number:5010050005

SKU: 5010050005 Categories: ,

Additional information

Description

Turbine Kits

Model
Supercore
A/R
Inlet
outlet
Turbine Kits
Purchase link

B400X
5010050005
0.61
T25
V-BAND
5070050001

0.73
T25
V-BAND
5070050002

0.61
T3
V-BAND
5070050003

0.73
T3
V-BAND
5070050004

0.61
V-BAND
V-BAND
5070050005

※ Buy Together and Save More

Overview

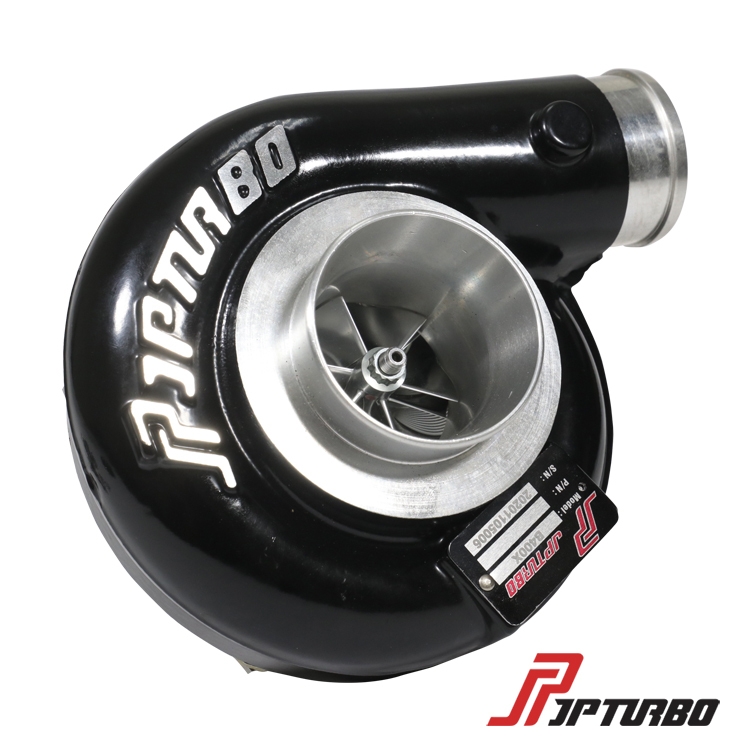

Introducing the B400X super core from JP TURBO – the ultimate universal turbocharger designed to handle a maximum horsepower of 400HP. Featuring patented dual ceramic ball bearings, this powerhouse can extend its service life and produce a lightning-fast spool up that'll leave the competition in the dust. Plus, with its water-cooled CHRA, you can keep the core temperature at the lowest level, ensuring a longer lifespan even during intense driving. The Inconel-made turbine is a super alloy that can maintain its strength when exposed to high exhaust temperatures for a long time. And with a range of options to choose from, including various A/R and flange configurations, the turbo exhaust housing gives you the flexibility to customize your turbocharger to fit your specific needs. Experience the power and performance of the B400X super core – the ultimate choice for speed enthusiasts!

Application for

1.4-2.5 GASLINE ENGINE
2.8-4.0 DIESEL ENGINE

Features
JP Turbo utilizes a newly developed patented light-startup ball bearing technology, featuring ceramic balls and a PEEK retainer. Our bearings utilize high-precision ground Si3N4 ceramic balls with a smooth and mirror-like surface, paired with a high-temperature-resistant, wear-resistant, shock-resistant, and lightweight polymer material called PEEK. This design results in our ball bearings having a better spool upt than other brands in the market.

The high-flow turbine wheel has been upgraded to include Inconel alloy, which is predominantly made up of nickel and can withstand higher temperatures and pressure. With an optimized blade design, it provides superior airflow efficiency, smoother exhaust, and reduced backpressure, resulting in significantly improved wheel performance.

The upgraded aero grade aluminum billet compressor wheel allows higher intake air volume and improves air inlet efficiency.

Enlarge Aero Grade Aluminum Billet Wheel.



Balanced by Schenck balancing machinePrecise balancing is a crucial process in the production of JP Turbo. A well-balanced turbocharger is vital for ensuring excellent performance and reliability, as well as minimizing the noise generated during high-speed operation. To achieve the best balance, we have strict operating standards in place. We start by performing low-speed dynamic balancing using a high-precision single-piece balancing machine. Then, we assemble the CHRA parts with great care before subjecting them to high-speed dynamic balancing. Our state-of-the-art high-speed dynamic balancing machine can reach a maximum speed of 250,000 RPM, surpassing OEM standards. We assign a unique serial number to each turbo and keep the balance test results in our database for future reference. The Schenck balancing machine ensures that the turbos are balanced to perfection.
